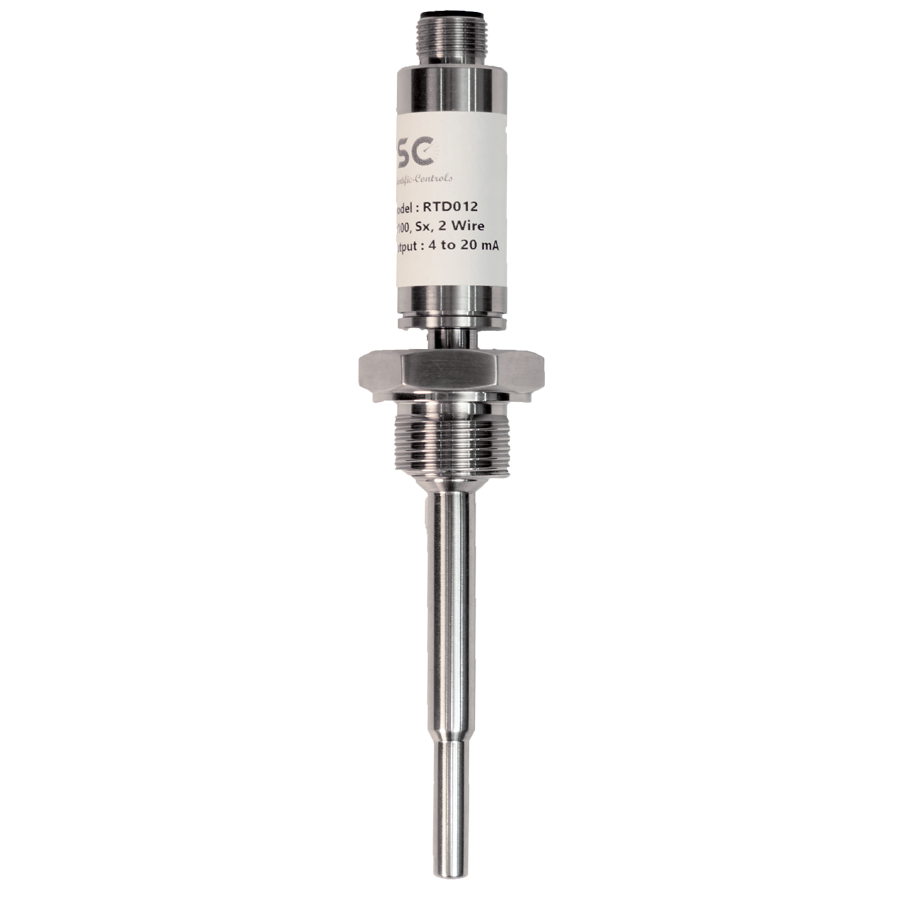

Compact Rtd with M12 Connection

Type: Pt100, 3 wire

Accuracy:Class A accuracy as standard, Class AA optional

Range: (-)50°C...200°C

Connector: M12 connector with IP69K for electrical connection

Process Connection :1/2", 3/4" or 1" Triclover also available in Thread connection

Wetted parts : AISI 316L (1.4404) body

Surface finish :Ra <= 0.51 micro m & <= 0.8 micro m for wetted & non-wetted surfaces respectively.

Optional :Weld-in adaptors & mating sanitary fittings

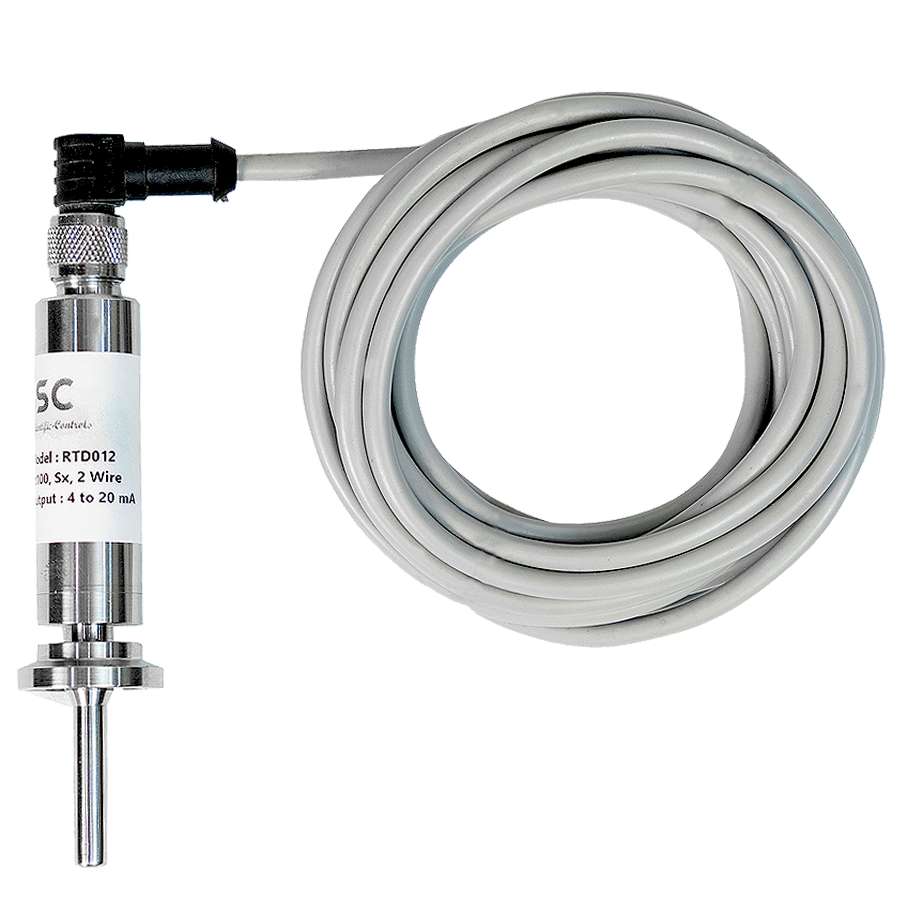

Type:Pt100, 2 wire

Accuracy:Class A accuracy as standard, Class AA optional

Transmitter Range:(-)50°C to 100°C, 0 to 150°C, 0 to 200°C and 0 to 250°C

Connector:M12 connector with IP69K for electrical connection

Process Connection :1/2", 3/4" or 1" Triclover also available in Thread connection

Wetted parts : AISI 316L (1.4404) body

Output : 4 to 20 mA

Optional :Weld-in adaptors & mating sanitary fittings
