2.5” Contact Gauge
-
4” Contact Gauge
-
2.5” Contact Gauge (Back DIN Type)

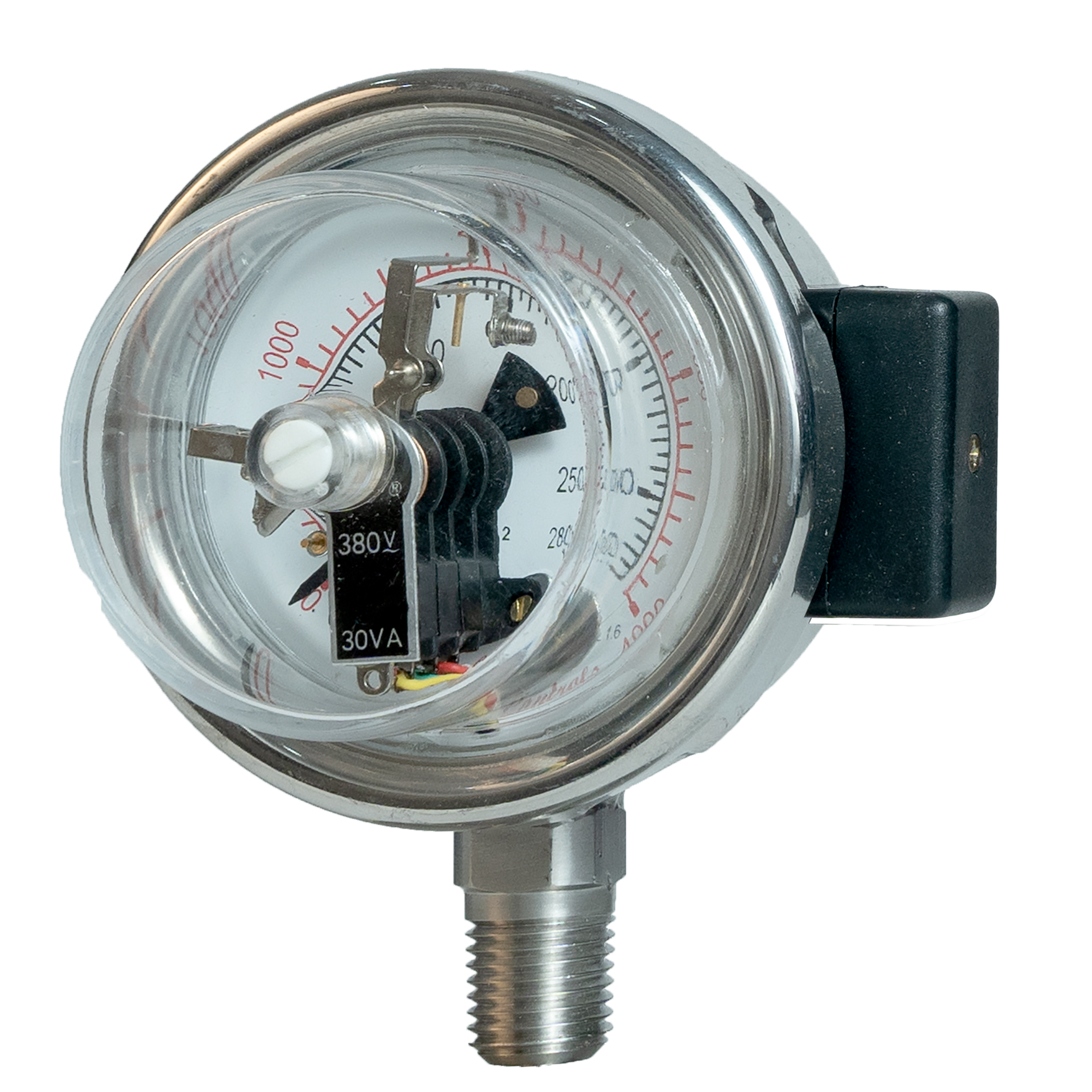

2.5” Contact Gauge
Dial Size:63mm
Accuracy:1.6% for Gauge & 2% for Contact
Range:upto 420 bar
Contact:1 NC + 1 NO, SPST, Magnetic Snap Action
Termination:Side Connector, Open Leads

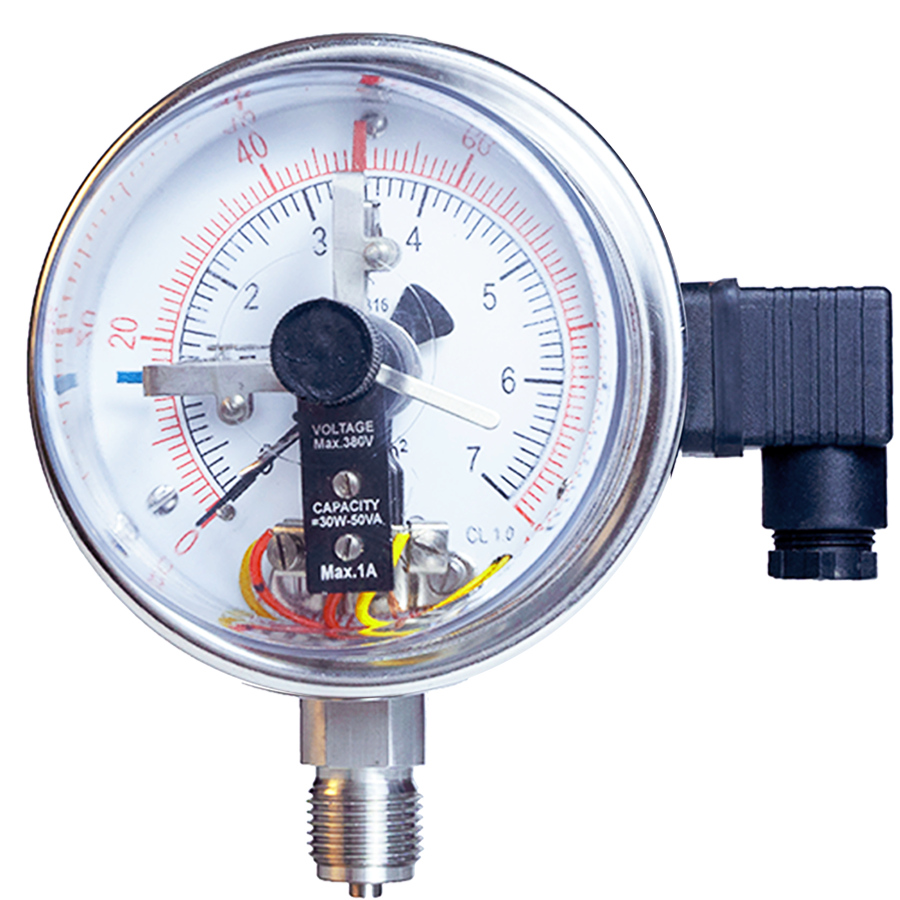

4” Contact Gauge
Dial Size:100mm, 150mm
Accuracy:1.6% for Gauge & 2% for Contact
Range:upto 700 bar
Contact:1 NC + 1 NO, SPST, Magnetic Snap Action, 2 nos, SPDT @ 5Amp Microswitch on request
Termination:DIN Type, Open Leads

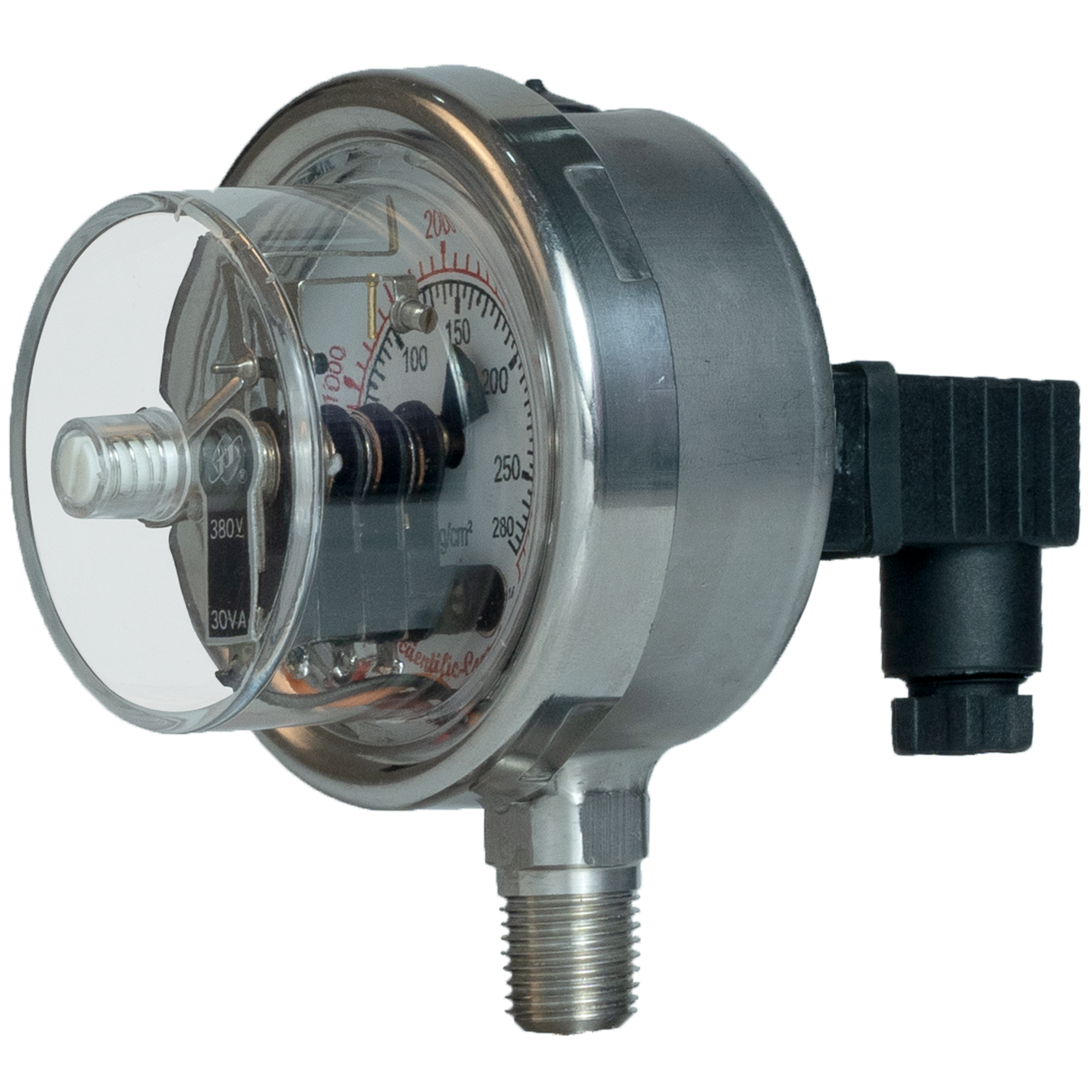

2.5” Contact Gauge (Back DIN Type)
Dial Size:63mm
Accuracy:1.6% for Gauge & 2% for Contact
Range:upto 420 bar
Contact:1 NC + 1 NO, SPST, Magnetic Snap Action
Termination:Back DIN Type, Standard Connector
